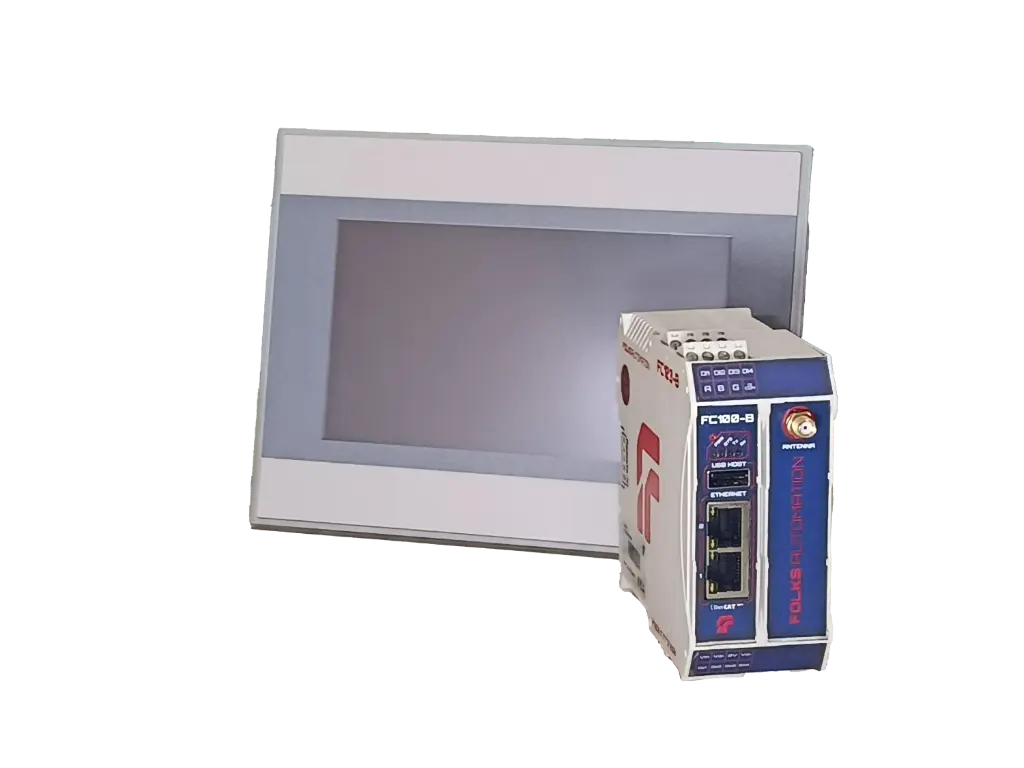

HMI FHM-MR0701NE
1. Display
* Screen Type: 7 inch TFT LCD
* Resolution:
- Standard: 800 x 480
- High Resolution: 1024 x 600
* Brightness: 400 cd/㎡
* Contrast: 500:1
* Backlight: LED with > 30,000 hours lifespan
* Color: 16.7M colors
* Visual Angle: 80/80/80/80
2. Touch
* Type: 4-wire resistive type
* Accuracy: Length (X-axis) ±2%; Width (Y-axis) ±2%
3. System & Memory
* CPU: ARM Cortex-A7 Dual core 1GHz
* Flash Memory: 128MB
* RAM:
- Standard: 64MB
- High Resolution: 128MB
* RTC: Built-in real-time clock
4. Communication & Ports
* USB Host: 1x USB 2.0
* Serial Port:
- COM1: RS-232
- COM2 & COM3: RS-485 (2W/4W)
* Ethernet: 10/100Mbps self-adaption
* Expansion: Supports 4G Remote module
5. Power / Electrical
* Input Voltage: 9-36VDC (±10%)
* Power Consumption: 10W (420mA @ 24VDC)
* Power Isolation: Built-in
* Withstand Voltage: 500VAC for 1 minute
* Insulation Impedance: 50MΩ @ 500VDC
6. Structure & Physical
* Unit Dimension: 212 x 156 x 45 mm
* Cut-out Dimension: 192 x 138 mm
* Mounting Method: Panel Mounting
* Weight: Approx. 0.9 Kg
* Casing Material: Engineering Plastics
7. Operating Environment & Certification
* Protection Level: Front Panel IP65; Back Cover IP20
* Operating Temperature: 0°C to 50°C
* Storage Temperature: -20°C to 60°C
* Humidity: 10% - 90% (non-condensing)
* Certification: CE
