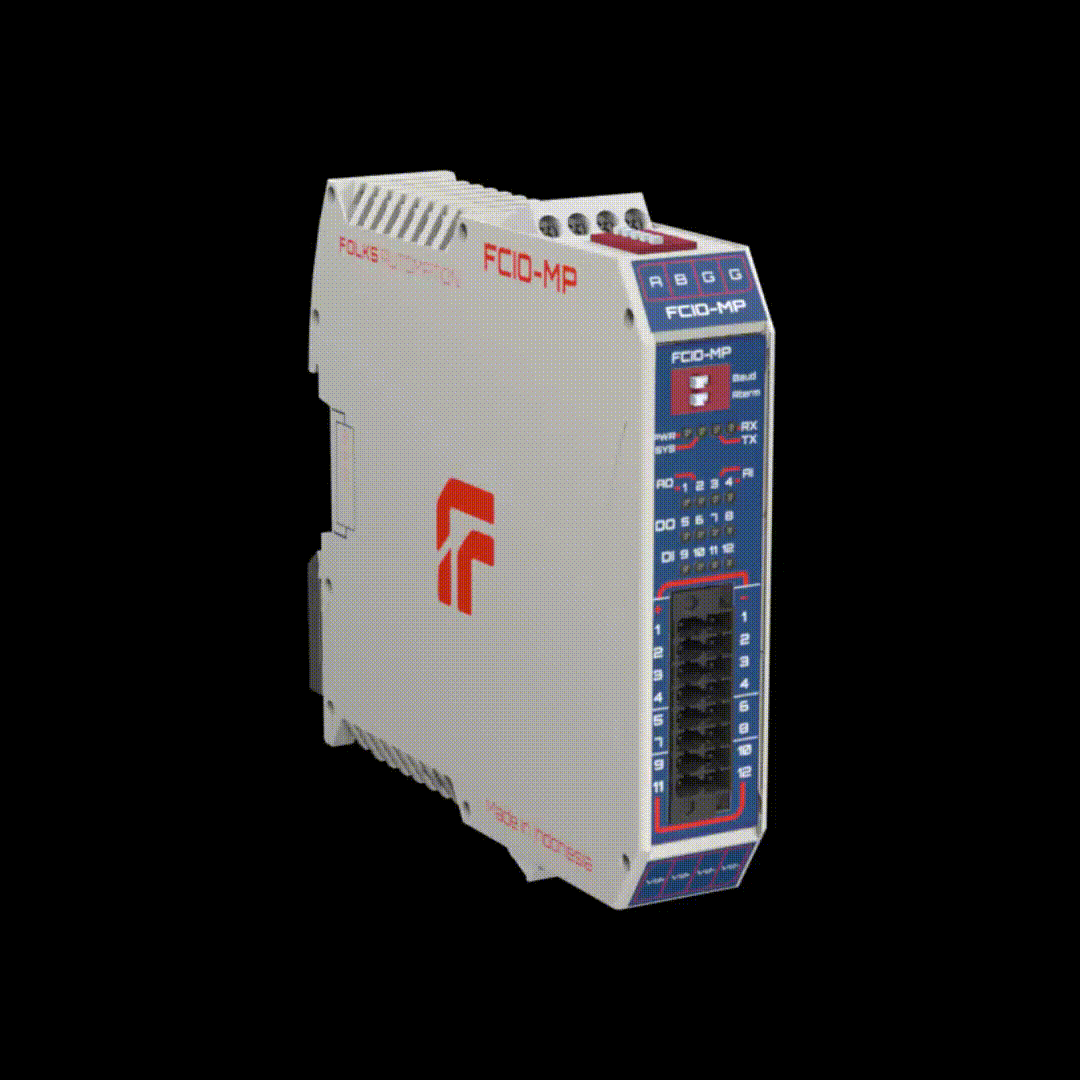

FCIO-MP
Supply Voltage: 24 VDC
Standby Power: 1W
Output Points: 2 Analog Output, 4 Digital Output
Input Points: 2 Analog Input, 4 Digital Input
Analog Output type: 4-20mA current (min. 0mA, max. 25mA)
Analog Input type: 4-20mA current (max. ±25mA)
Digital Output type: sourcing (max. 1A of output current per port)
Digital Input type: PNP (max. 8.43mA of current consumption at 24V)
Digital Output Load type: Inductive, Resistive, and Capacitive
Digital Output Protection: short-circuit, thermal shutdown, ESD protection, flyback
Analog Output diagnostic: current value monitor
Analog Input diagnostic: over-current alarm
Digital Output diagnostic: short-circuit or over-current alarm
Environment operating temperature: -20°C to 55°C
IP rating: IP20
Communication Interface: RS485 via TBUS or Terminal Block
Communication Protocol: Standard Modbus RTU
Supported Baudrate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000, 460800, 576000, 921600
