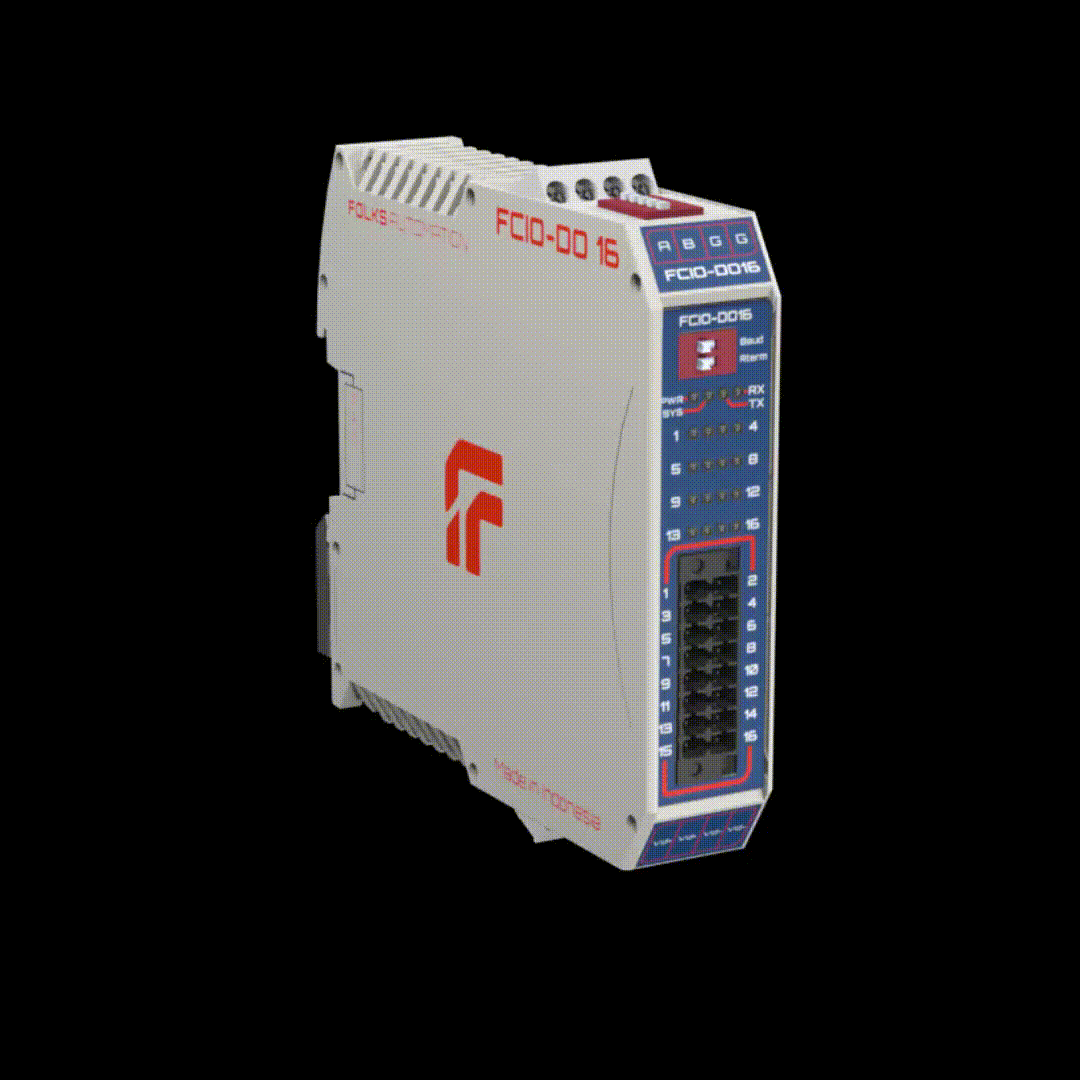

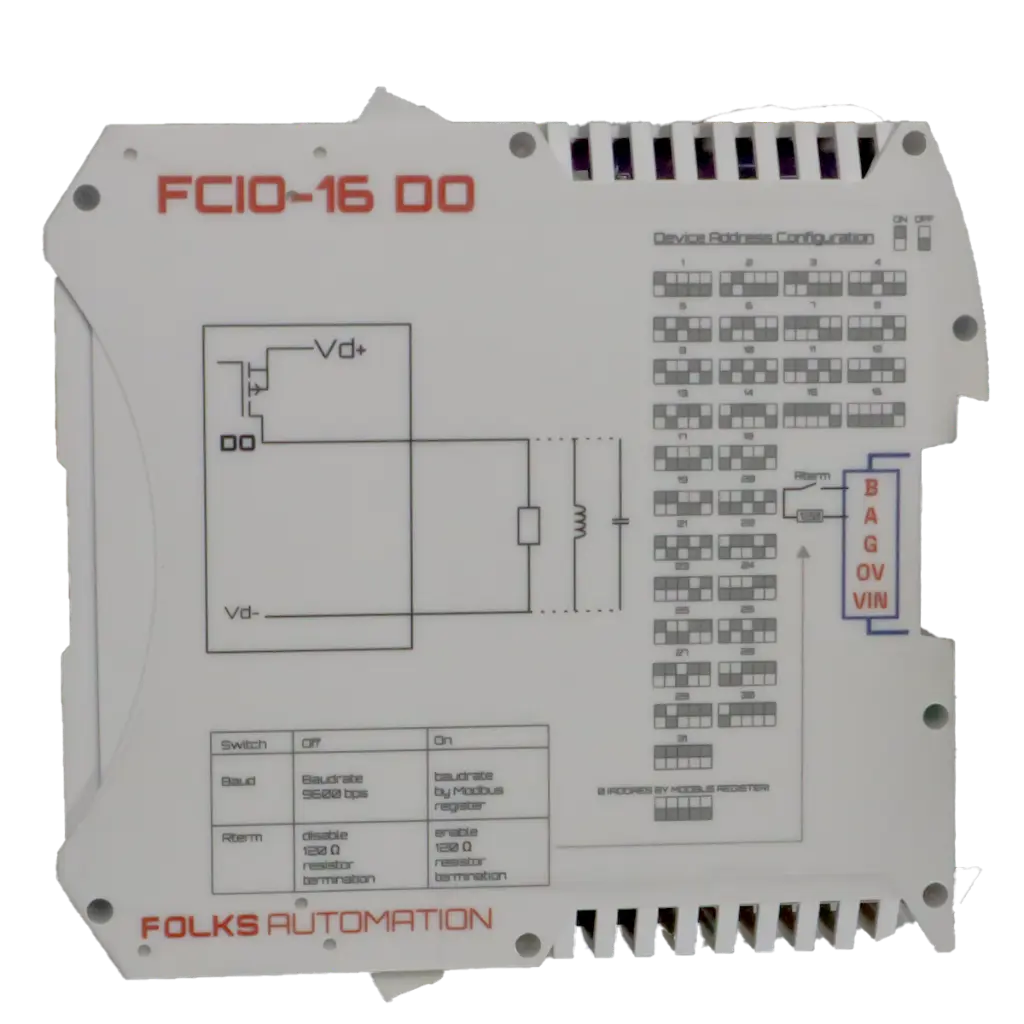

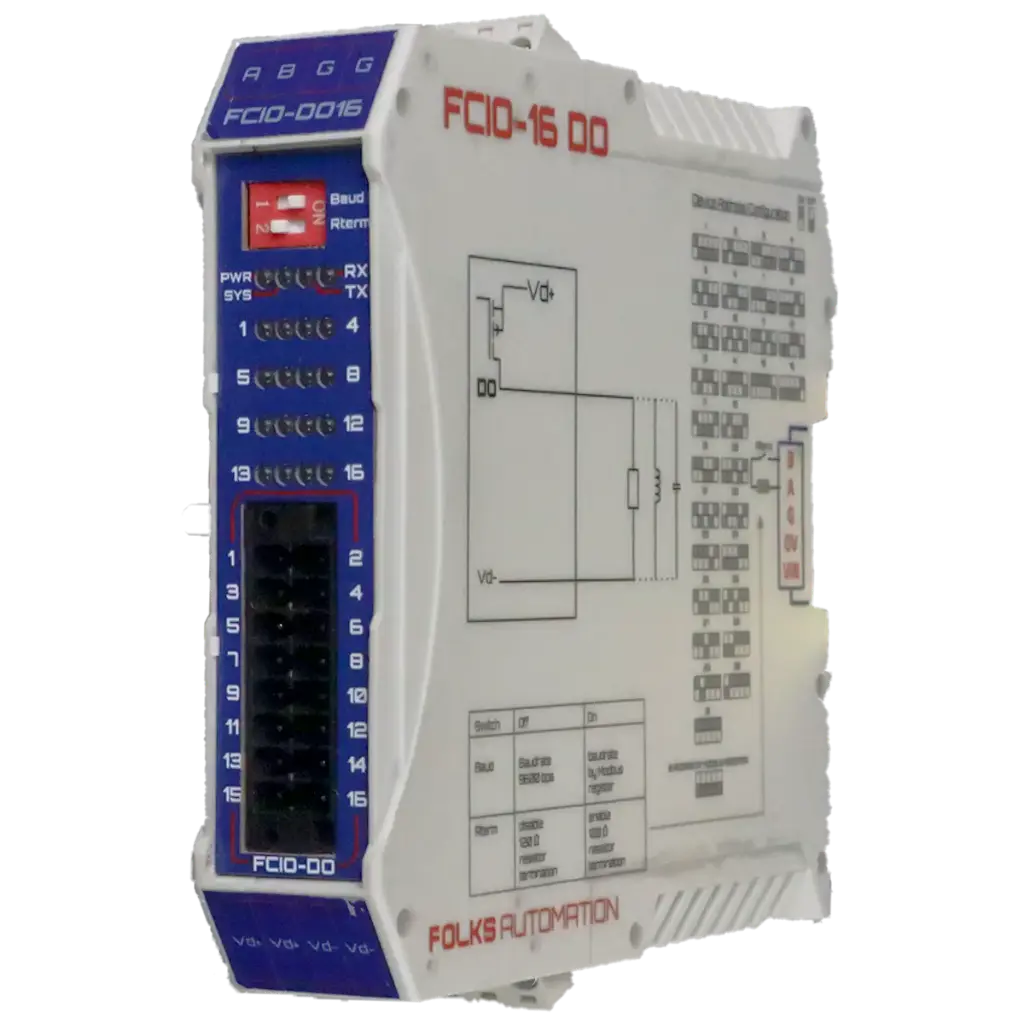

FCIO-DO16
FCIO-DO is a Digital Output (DO) expansion module equipped with 16 digital output channels at 24V DC, enabling control of actuators such as relays, solenoids, and indicator lamps from the FC100-B PLC.
Specifications:
Specifications:
- Output voltage: 24V DC (range 15–30V)
- Current per channel: Max. 1A
- Total maximum current: 5A
- Status indicator: LED per channel
- Power consumption: –
- Dimensions: 104.5 x 75 x 35 mm
- Mounting: DIN Rail (35mm)
Key Features:
- 16 digital sourcing outputs (PNP) 24V
- DCCapable of handling up to 1A per channel
- LED indicator for each output
- Protection against overcurrent & short circuit
- Compatible with the FC100-B modular system via T-Bus
Applications:
Ideal for controlling small motors, status lamps, valves, and other output devices in manufacturing automation systems, palm oil mills, or heavy industry.
