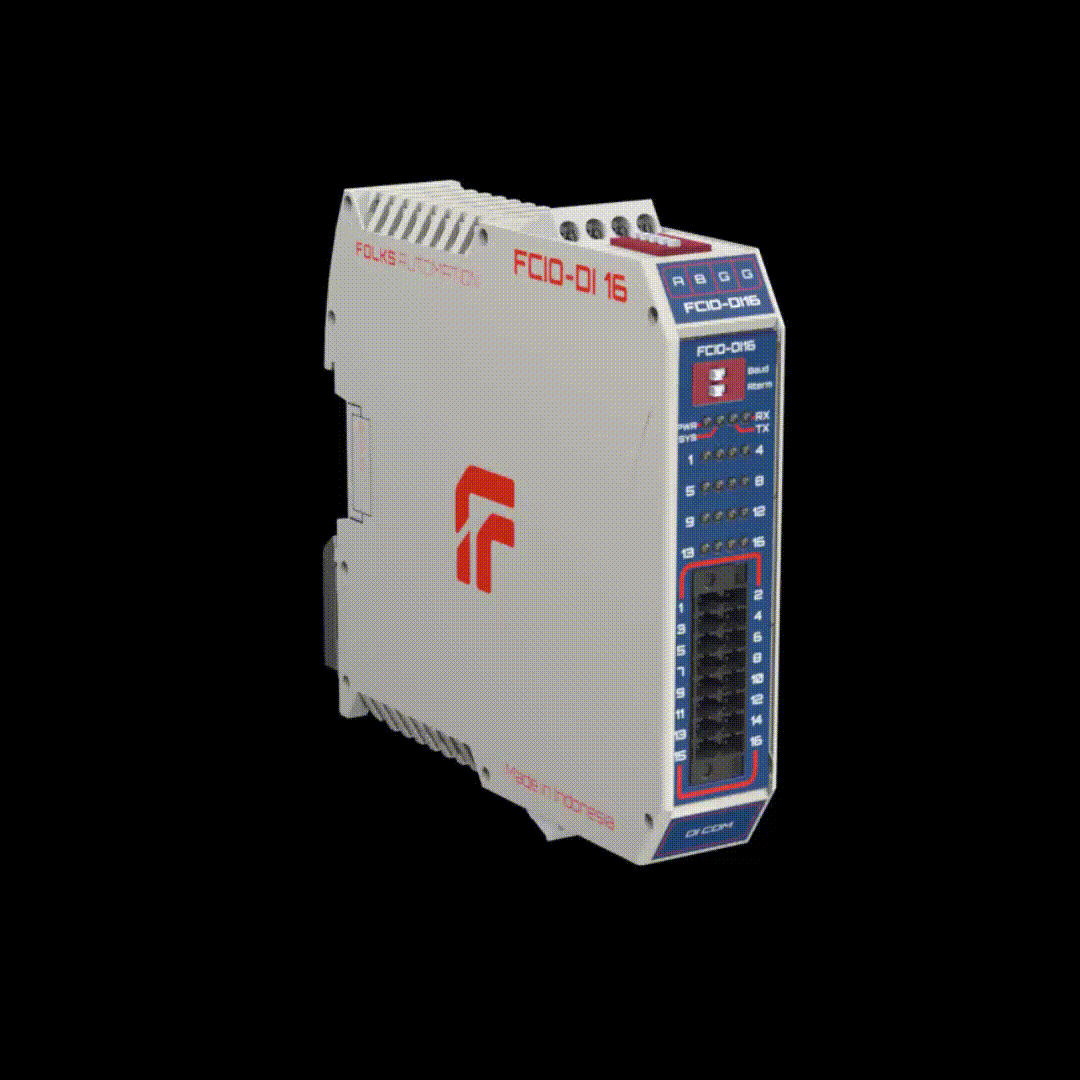

FCIO-DI16
FCIO-DI is a Digital Input (DI) expansion module for the FC100-B PLC, providing 16 digital input channels at 24V DC. It is suitable for reading signals from sensors, push buttons, or other digital devices in industrial automation systems.
Specifications:
• Input voltage: 24V DC (range 15–30V)
• Status indicator: LED per channel
• Signal type: Sink/Source
• Power consumption: <1.5W
• Dimensions: 104.5 x 75 x 35 mm
• Mounting: DIN Rail (35mm)
Key Features:
- 16 digital inputs, sink/source (24V DC)
- LED indicator for each input channel
- 4 common ports available (4×4 channel grouping)
- Easy integration with FC100-B via T-Bus connector
- Protection against reverse polarity and overvoltage
Applications:
Can be used to monitor sensor conditions, emergency buttons, limit switches, and other digital logic devices in factory automation systems, palm oil mills, coal mining operations, and logistics facilities.
