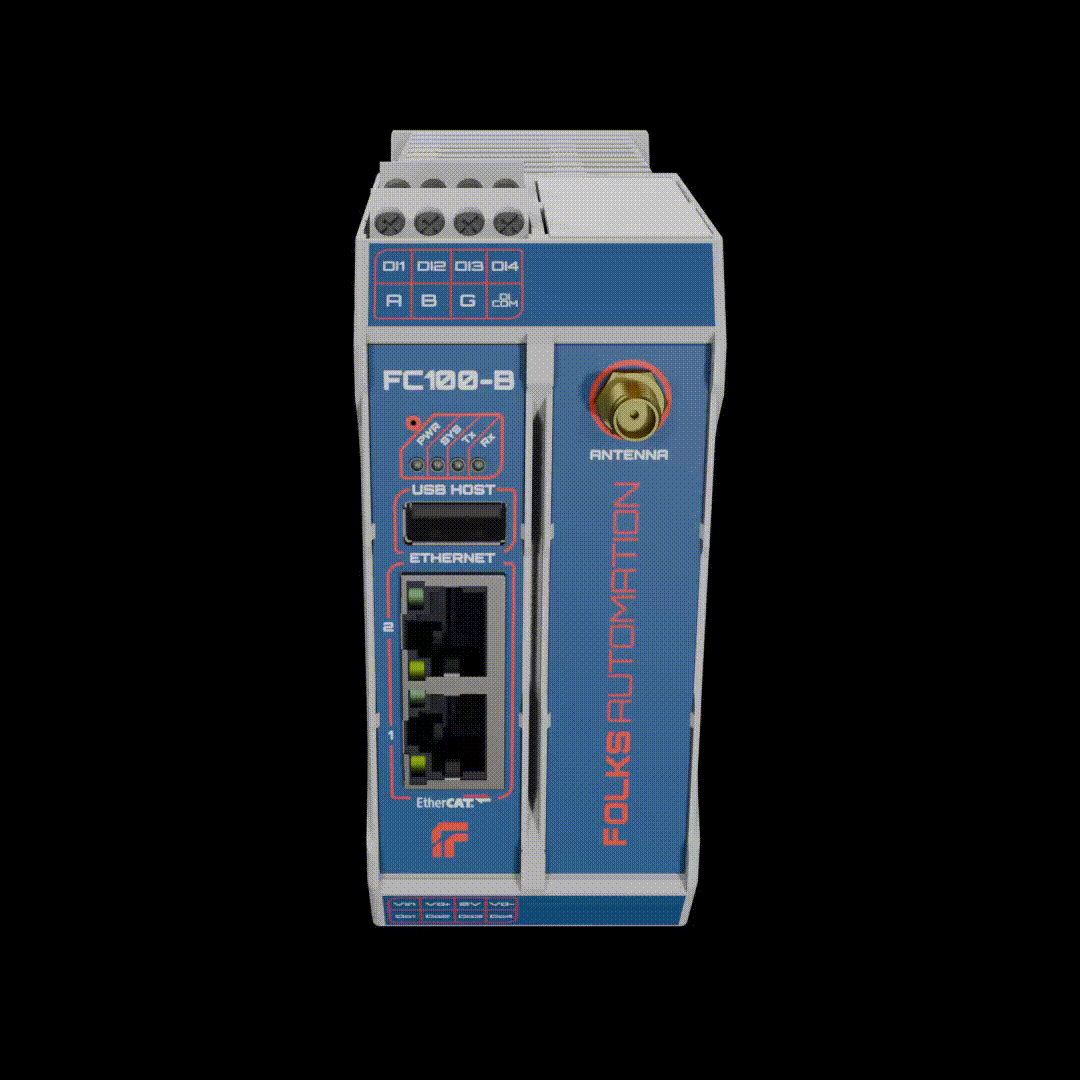

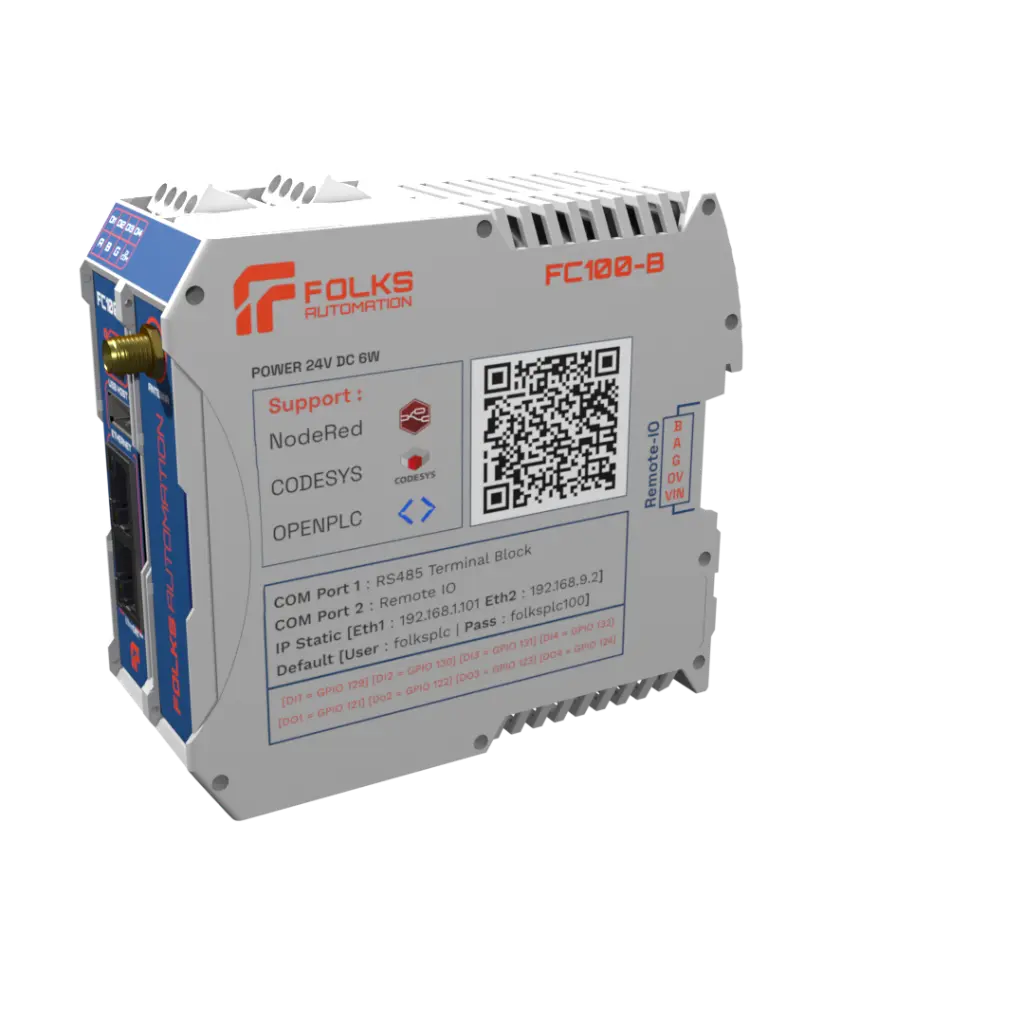

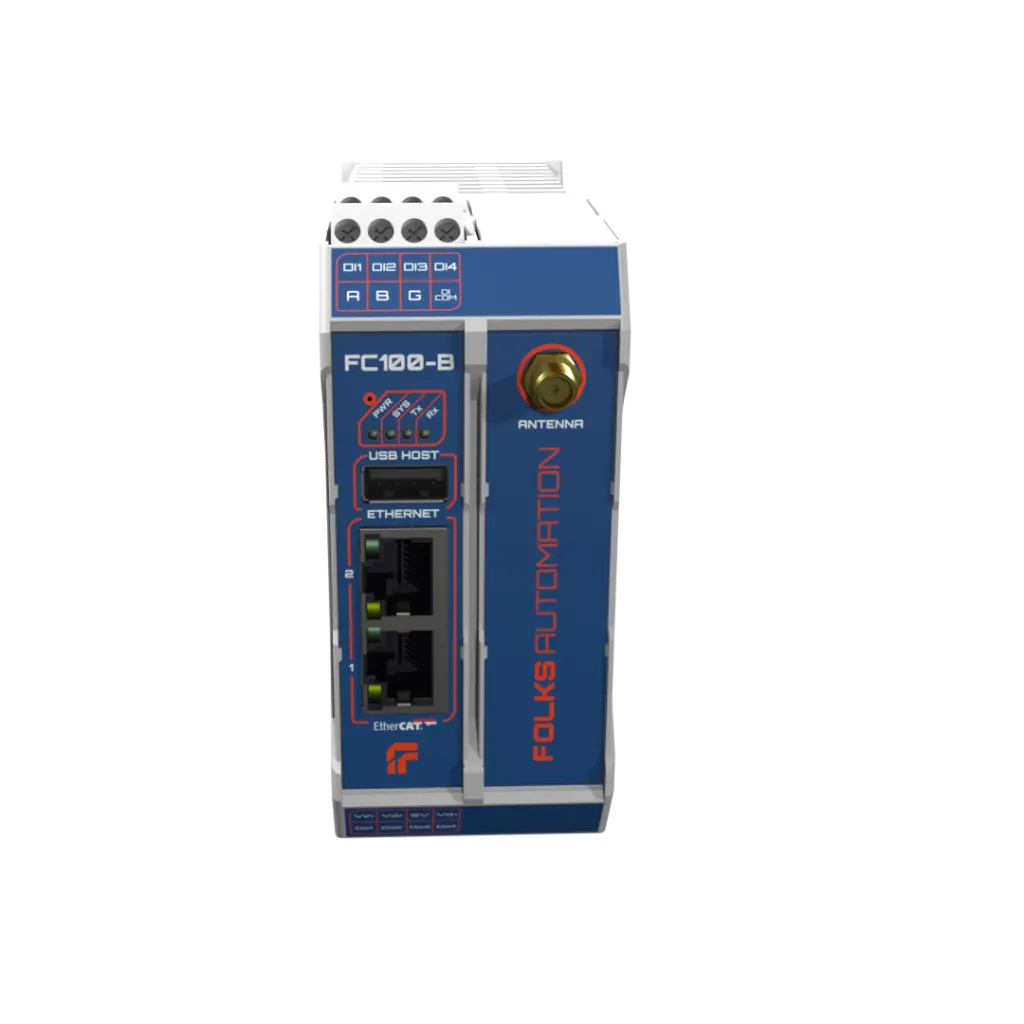

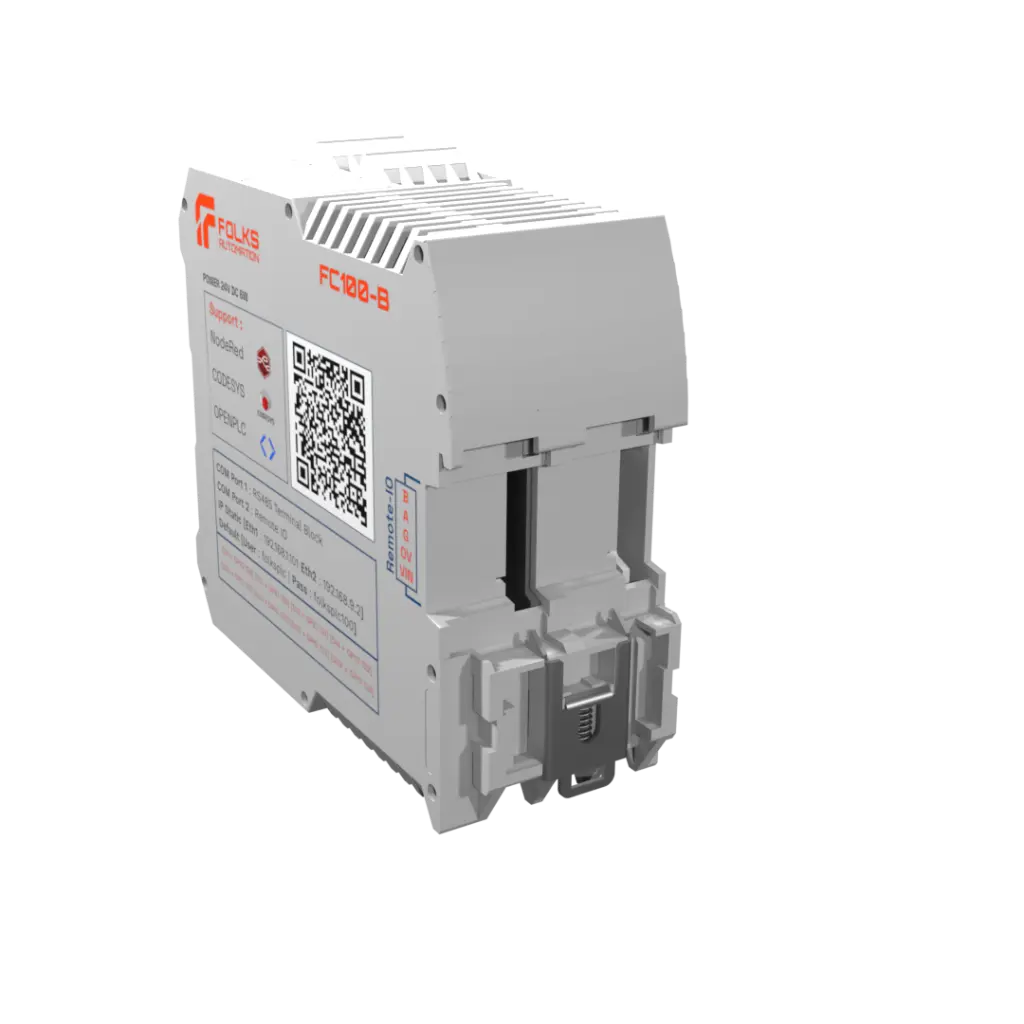

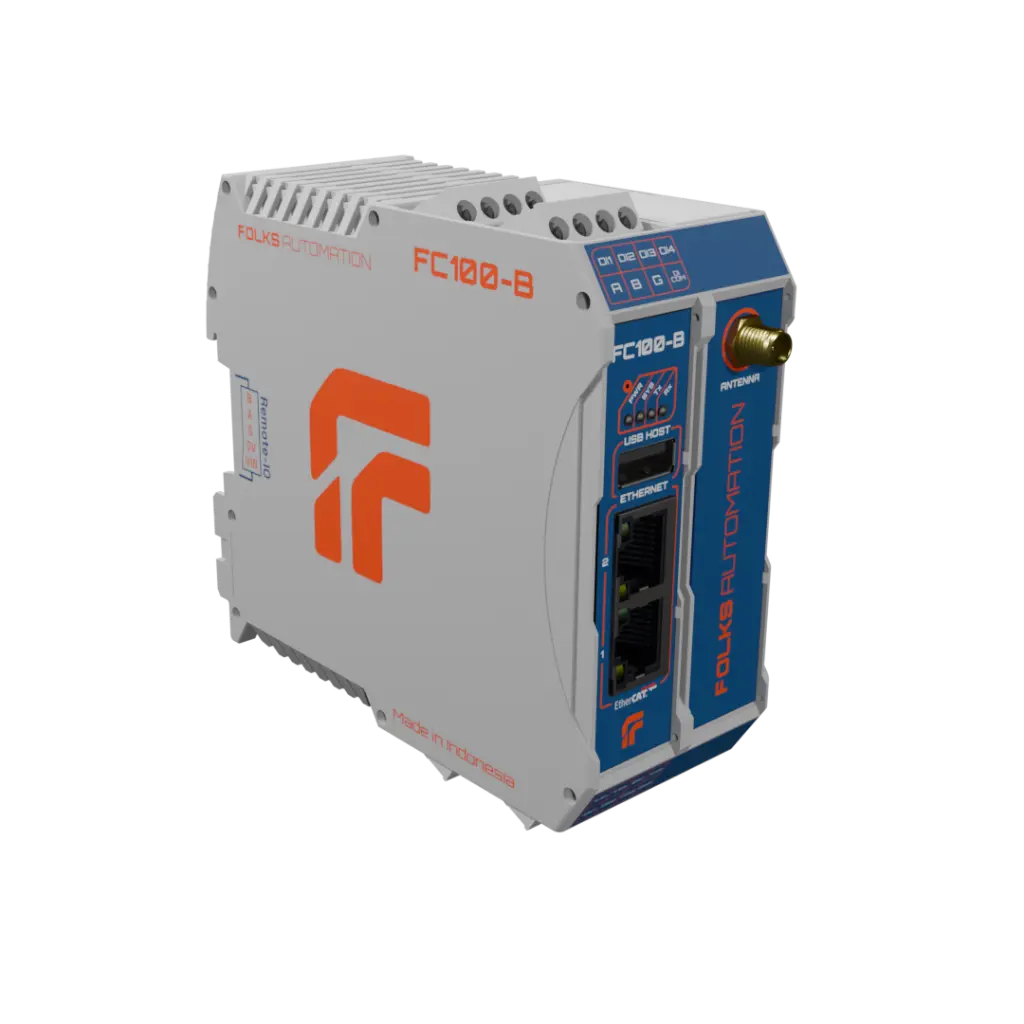

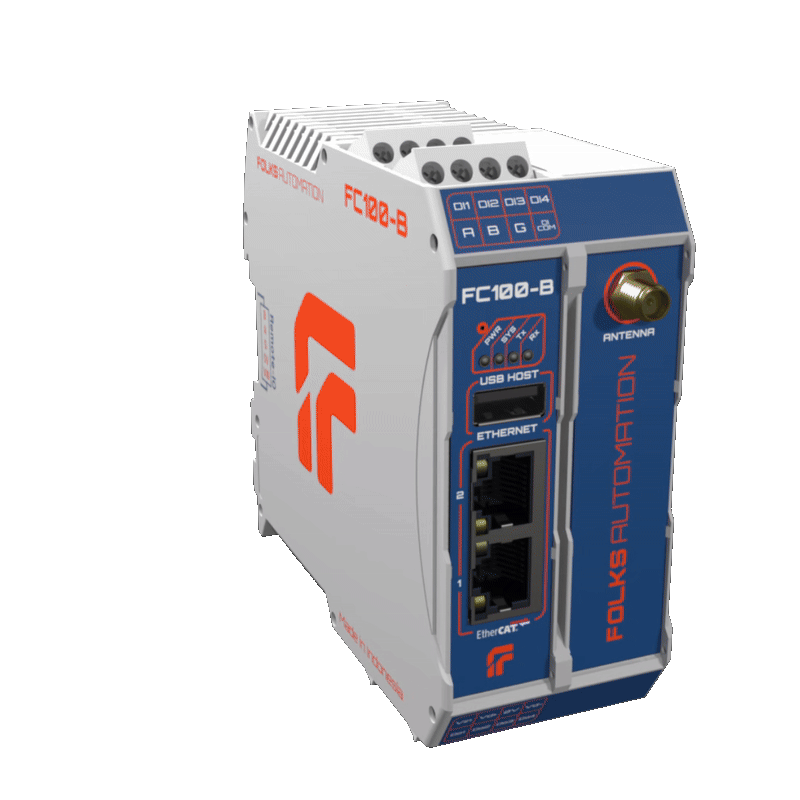

FC100-B
PLC FC100 adalah produk unggulan dari Folks Automation yang dirancang untuk memenuhi kebutuhan otomasi industri modern.
Produk ini unggul dalam fitur, modularitas, dan harga yang kompetitif, menjadikannya solusi ideal bagi perusahaan yang ingin mengadopsi teknologi otomasi dan IoT.
Kelengkapan:
- IoT-PLC FC100-B: 1 unit

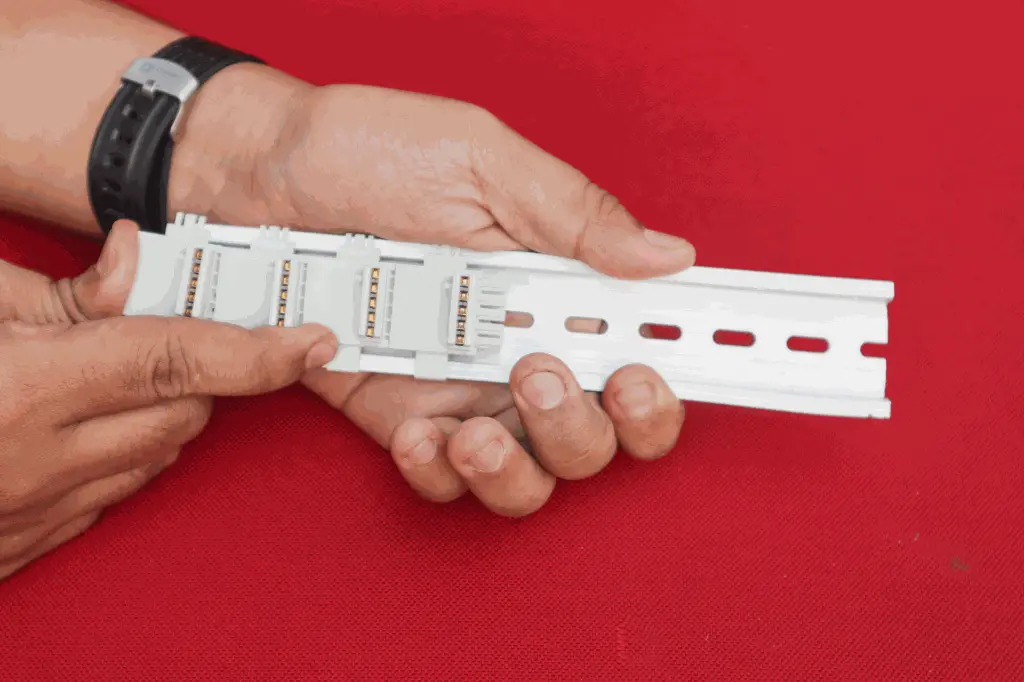

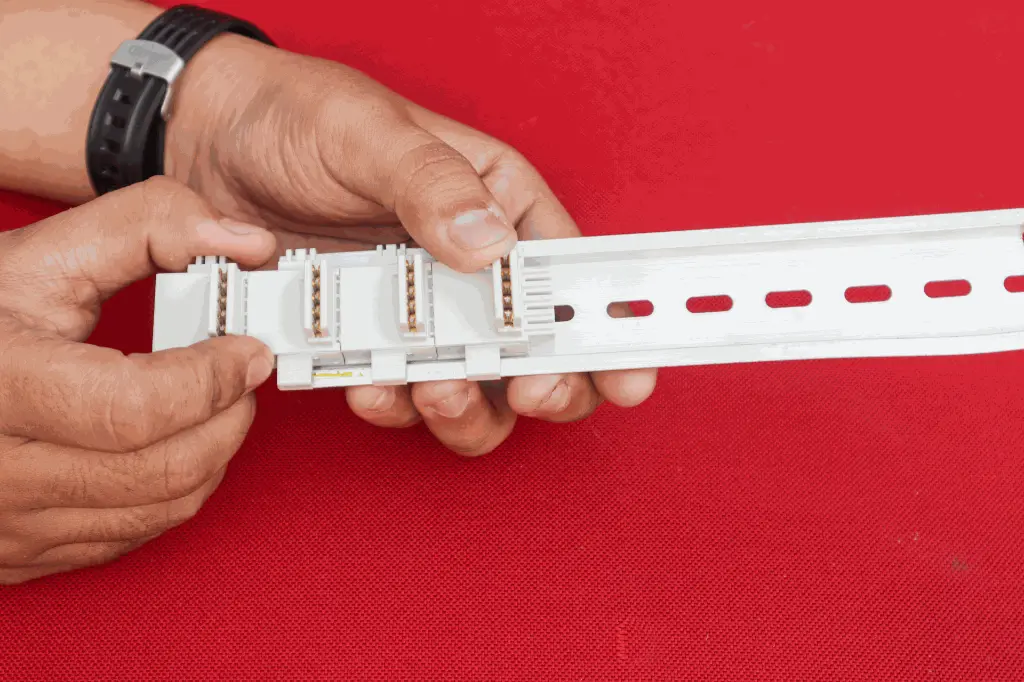

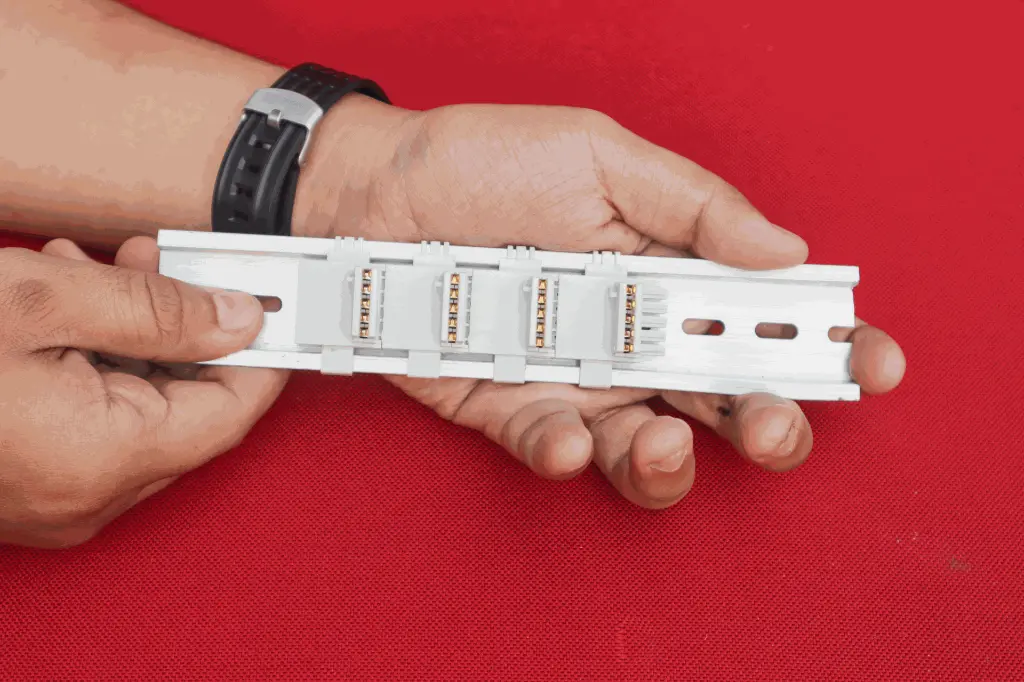

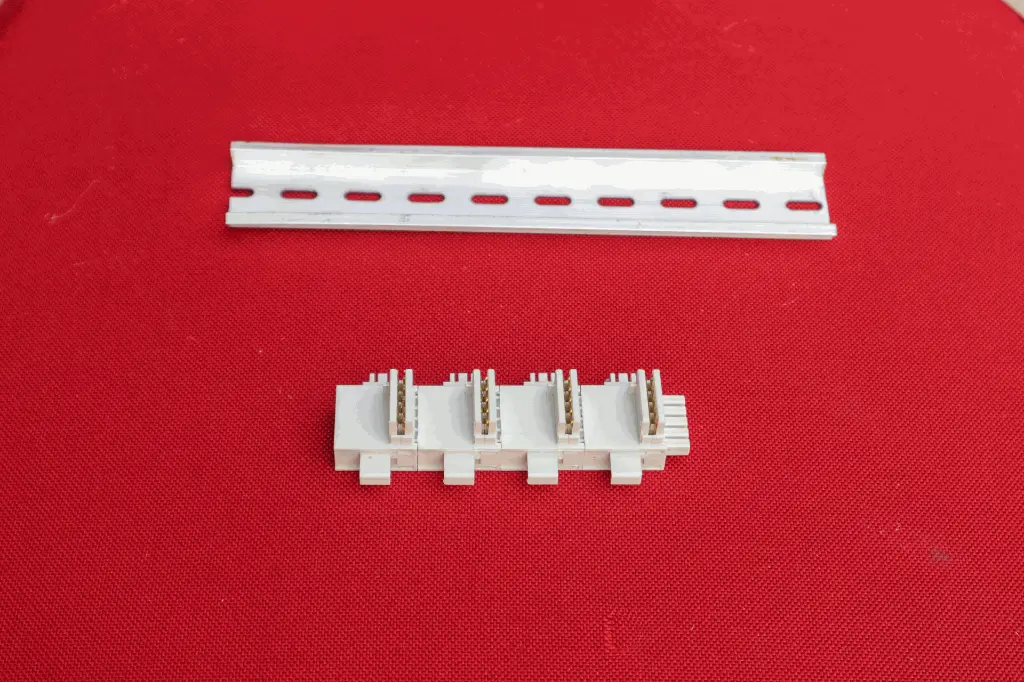

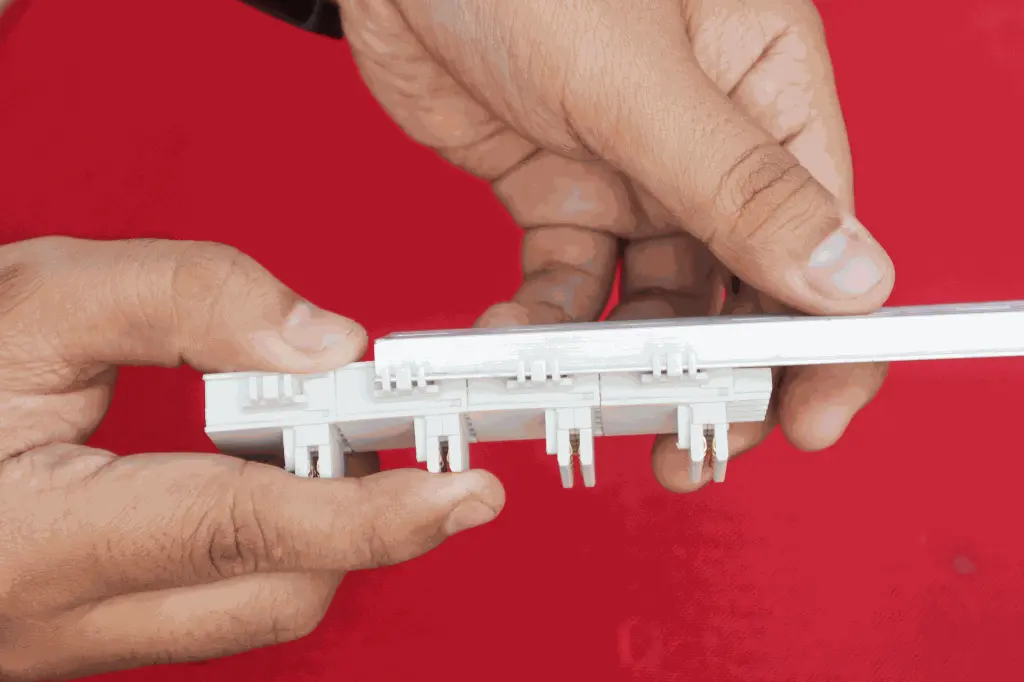

- TBUS (sudah terpasang): 2 unit
- Antenna Eksternal WiFi 2.5dBi SMA-female: 1 unit
- Kabel RJ45 1m cat5e: 1 unit
- kartu garansi: 1 unit
Specifications IOT-PLC FC100 :
1. Power : 24 Volt – 5 Watt•
2. CPU : 64bit Quad-core ARM cortex-A55 1.8GHz
3. RAM : 4GB LPDDR4
4. Wireless : WiFi 2.4 / 5 GHz
5. Ethernet : 2 x 10/100/1000 MBps (Gigabit Ethernet)
6. USB : 1 x USB 2.0 Host for external device such as Cellular, Modem etc.
7. IO Port :
– 4 x DI, Isolated min. 5V max.24V
– 4 x DO Sourcing mode 24V max.1A
8. IP Rating : IP20
9. Serial Port : 1 x RS485 Port for External Modbus RTU (added EMI filter + Lightning Surge Protection for field Modbus device).

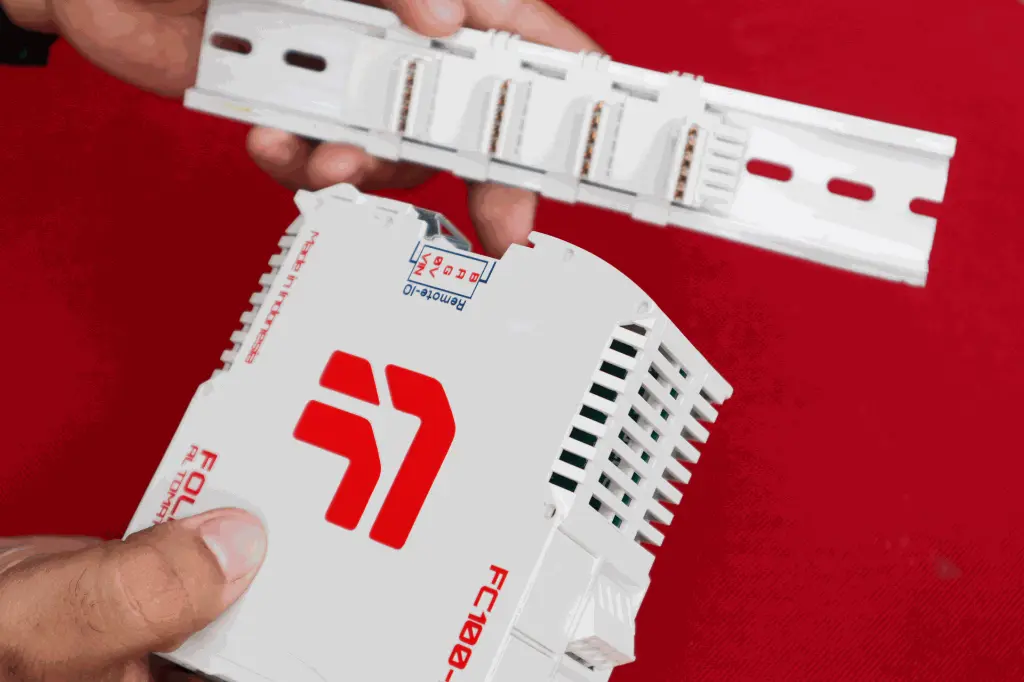

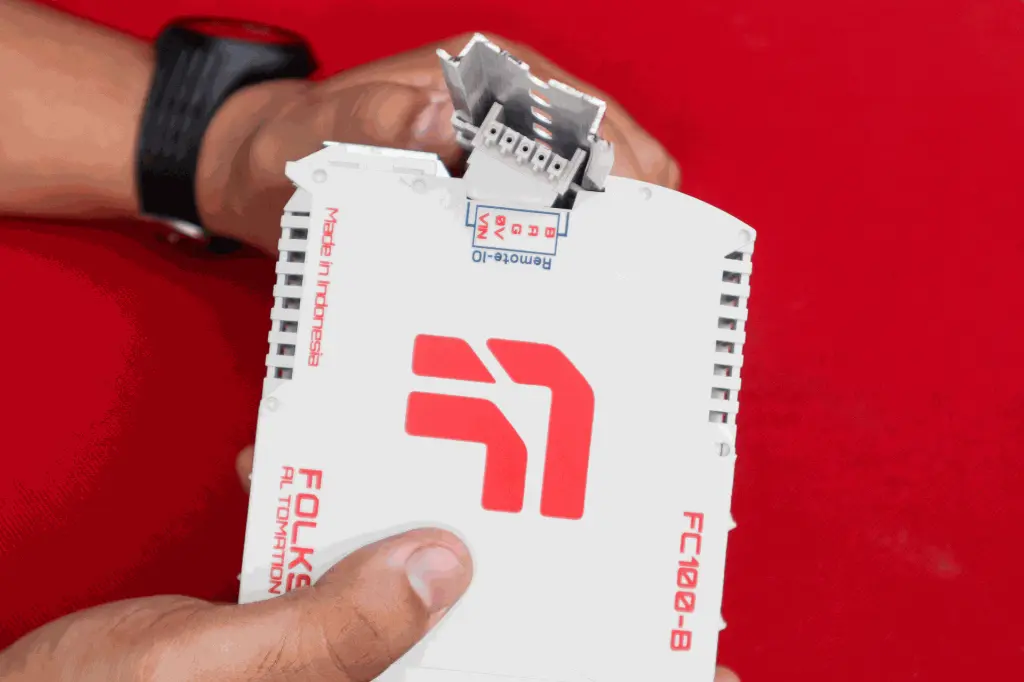

10. IO Connector : Port 1 x T-Bus Connector for Remote I/O Expansion Port up to 32 devices
11. Power Backup : Power Backup and Emergency Shutdown: make sure the module shutdown cleanly and prevent corruption of internal storage.
Product Advantages :
IOT-PLC FC100
1. IEC 61131-1 Standard Programming using Codesys V3
2. Multiple Interfaces & Protocols, including Wireless!
3. Easy to Start Up, just plug the Cable, then good to go...
4. Support for Open Source Programming; Python, C++, Javascript, etc.
5. Industrial Capability on Working Voltage and Working Temperature.
6. Modular Type with Remote-IO Extension.
